Introduction:

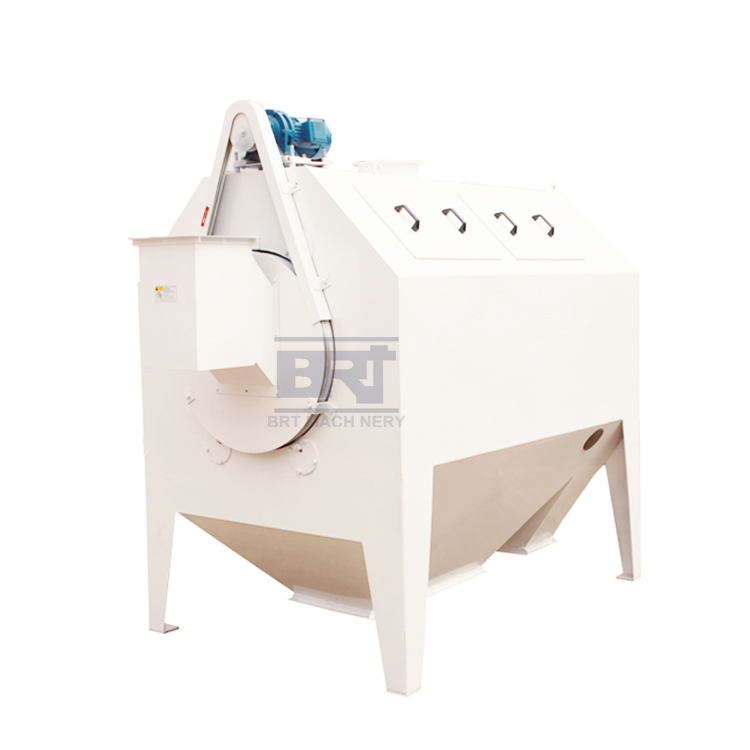

TCQY series Paddy Pre-cleaner is designed to clean raw material in rice milling plant and feedstuff plant.
Removing the large impurities such as stalk,clods,fragments of brick or stone.
Ensure the quality of material and prevent the next equipment from damage.
With high efficiency in pre-cleaning paddy, corn, soybean, wheat, sorghum and other grain.
Feature:
1.The efficiency of removing big impurities is higher than 99%.
2. Use horizontal arm cylinder, the screen drum with feeding and discharging, by different sieve mesh, greatly improve the screening efficiency.
3. Use backward feeding, the screw is settled in the discharging of screen drum, greatly lengthen sieving length improve the sieving effect.
4. Set inspection hole convenience to maintain and replace the sieving mesh.
5. Viewport is settled at the side and top, convenience to watch the working condition of the screening machine.
Model
TCQY63
TCQY80
TCQY100
TCQY125
Capacity(t/h)
5-8
8-12
11-15
12-18
Power(kw)
1.1
1.1
1.5
1.5
Rotation speed(r/min)
20
17
15
15
Air intake(m3)
1000-2000
1000-2000
1000-2000
1000-2000
Weight(kg)
310
550
760
900
Overall dimension
L*W*H(mm)
1525*840*1400
1590*1050*1600
1700*1250*2080
2000*1500*2318
