SFSP Series Hammer Mill
Classification：粮食加工设备Time：2021/11/3 13:17:42
View：7914
- Details
Introduction:

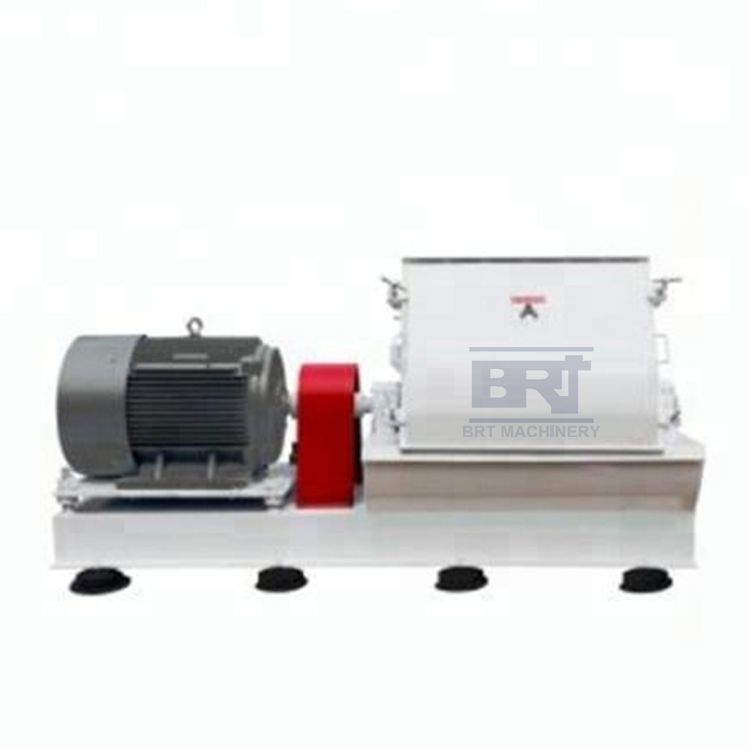

►Model SFSP hammer mill is widely used to grind the grain of stock such as corn, oil palm kernels and coconut.
►It is made of steel by welding, the motor is installed on the same base plate with grinder roller and drives roller directly by flexibility coupler. After dynamic balance experiment, grinder roller can clockwise and anti -clockwise work Inlet on top of grinder can match all kinds of feeding device. Hammer were assembled symmetrically .The model has compact structure, high output with easy and safe operation.
| Model | SFSP56*40 | SFSP60*45 | SFSP60*60 | SFSP60*70 | SFSP60*90 |
| Capacity | 0.5-1.25 | 0.8-1.5 | 1.0-1.8 | 1.2-2.0 | 1.5-2.2 |
| Power(kw) | 37 | 45 | 55-75 | 75-90 | 90-110 |
| Weight(kg) | 750 | 850 | 950 | 1050 | 1150 |
|
Dimension L*W*H(mm) |
1850*1050*1080 | 1950*1050*1080 | 2050*1150*1080 | 2150*1150*1080 | 2250*1200*1080 |
| Rotation speed (rpm) | 2960 | 2960 | 2960 | 2960 |
2960 |
